Overlay

Personalized fit

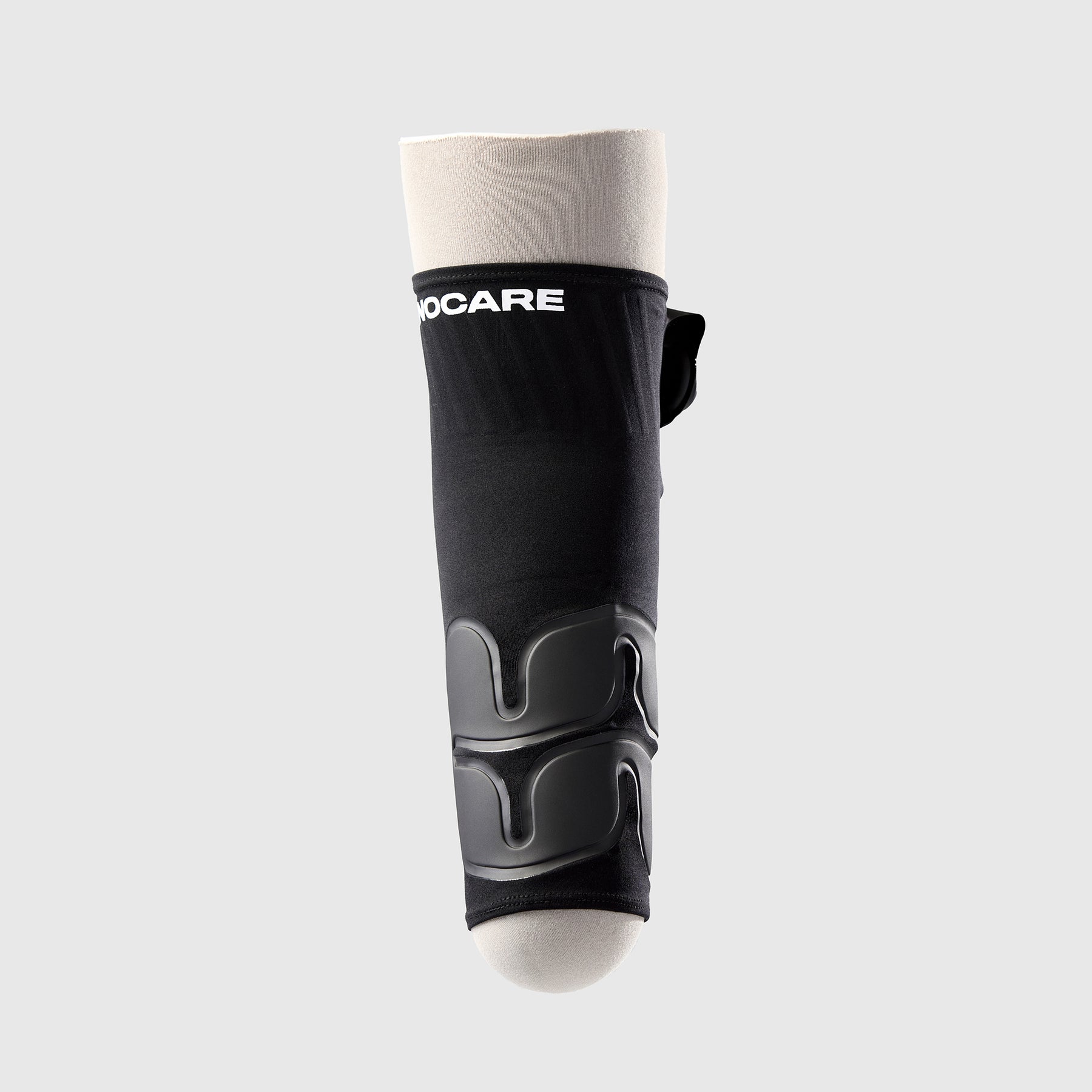

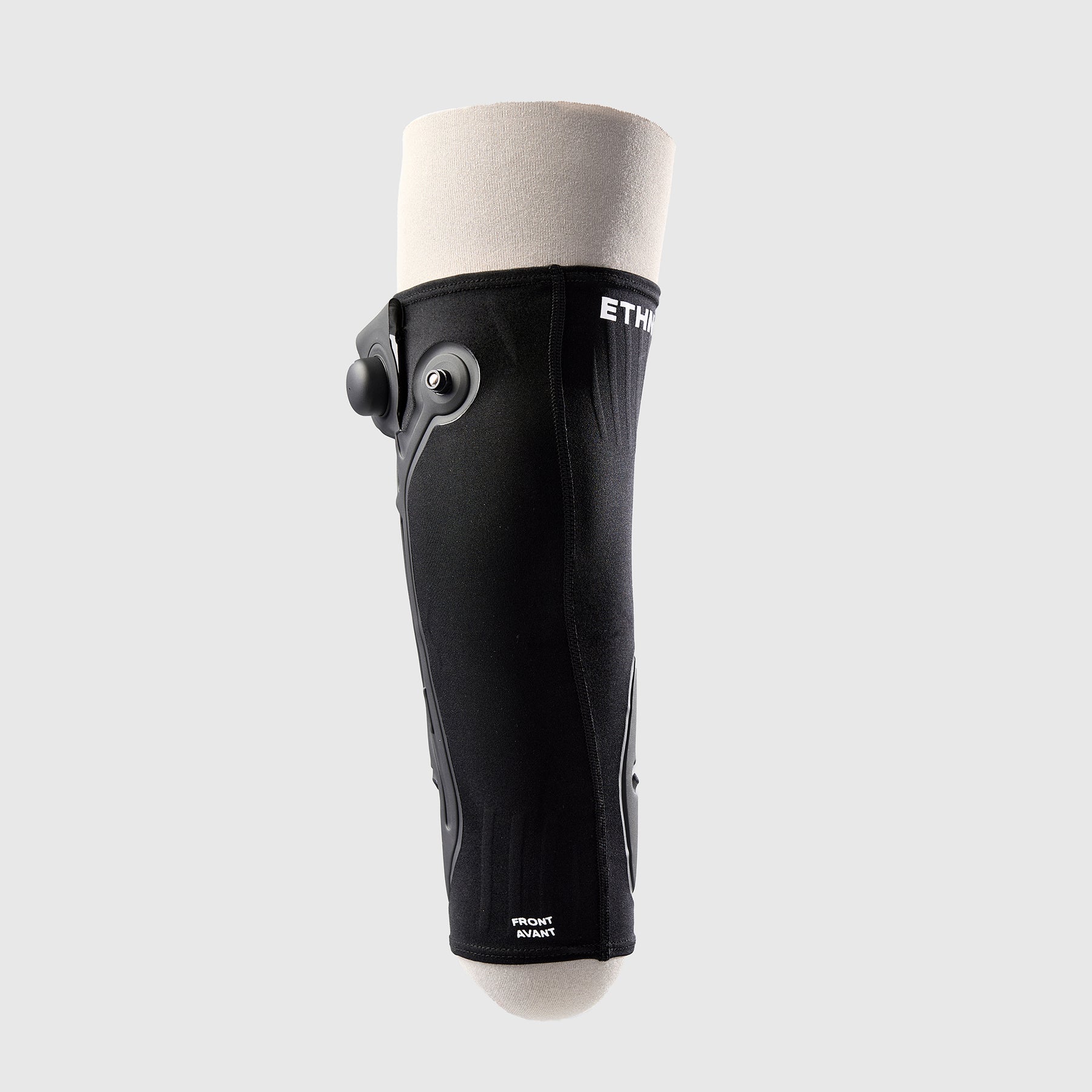

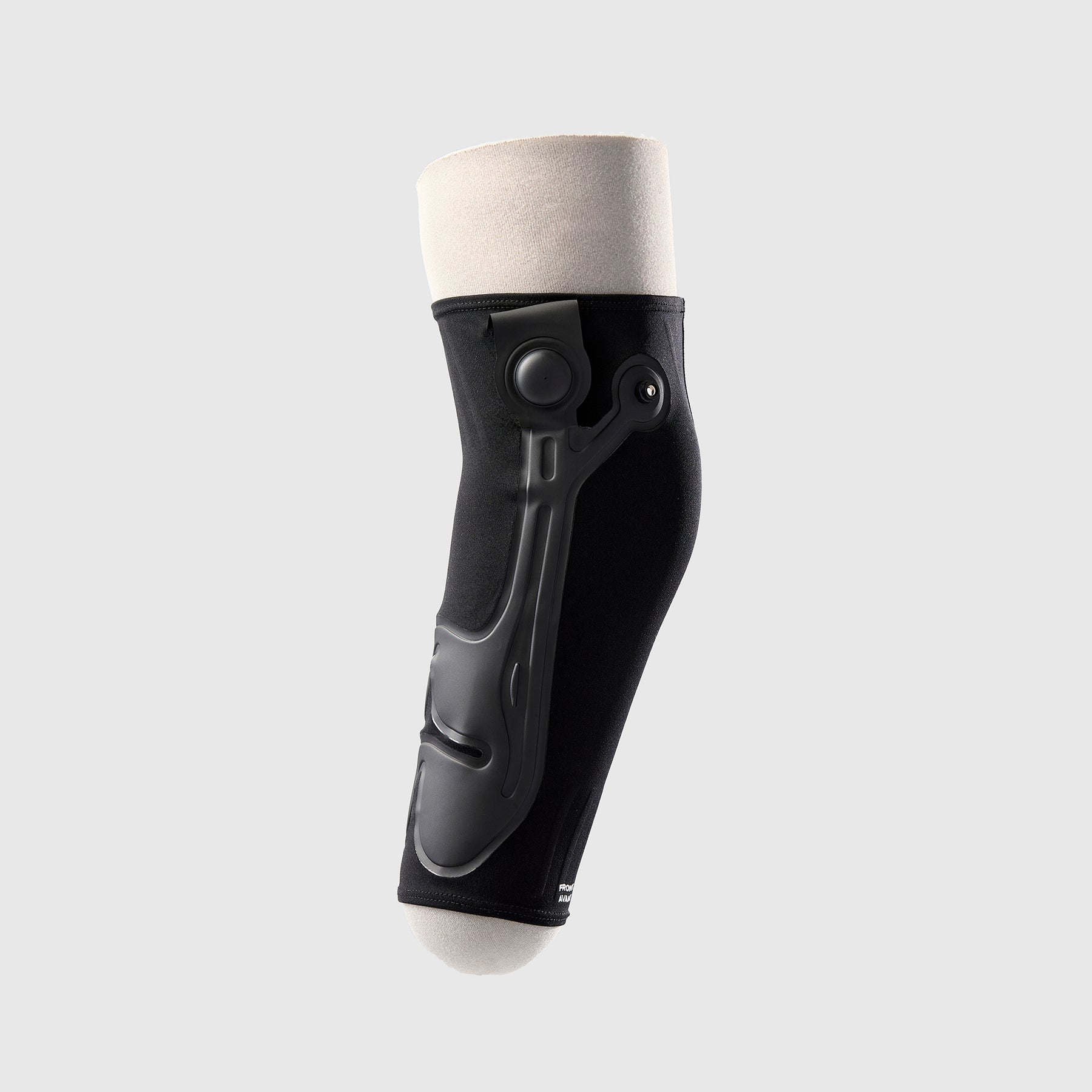

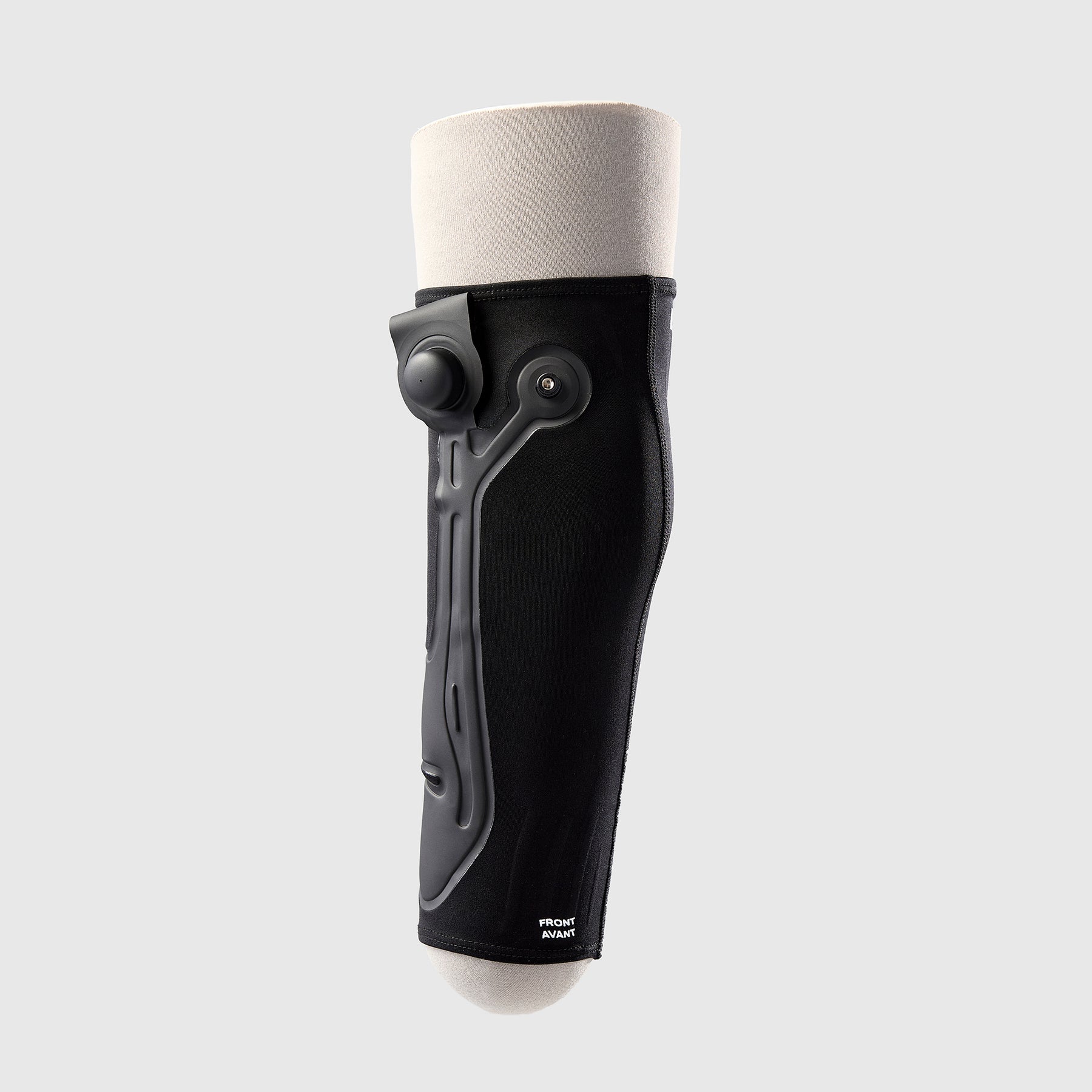

The Overlay is a stretchy and breathable textile sleeve featuring a unique air expansion system for a customized, comfortable and uniform fit in the socket.

Retrofit sizing

The Overlay incorporates advanced fabric technology with a total thickness of just under one millimeter. It's designed to be compatible with most liners and sockets, allowing you to continue using your existing equipment without disruption.

Air expansion system

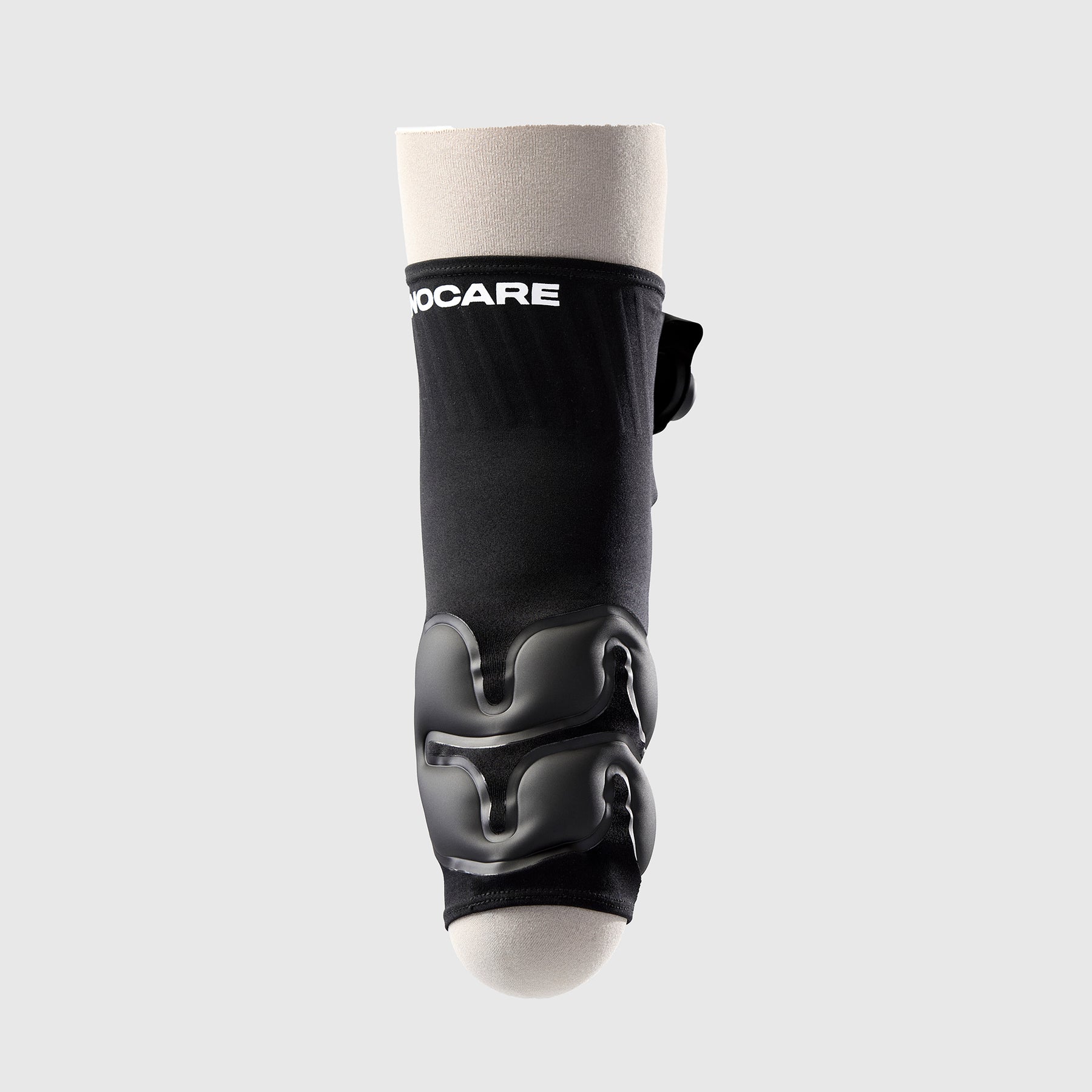

The Overlay incorporates an air expansion system as a replacement for prosthetic stockings, enabling more effective residual limb volume management.

I love the product so much, it saved me when I desperately needed help with my socket and my stump. So I firsthand know how beneficial the Overlay is.

Allison E. Lang

Step 01 02 03 04 05

Place the liner on the residual limb.

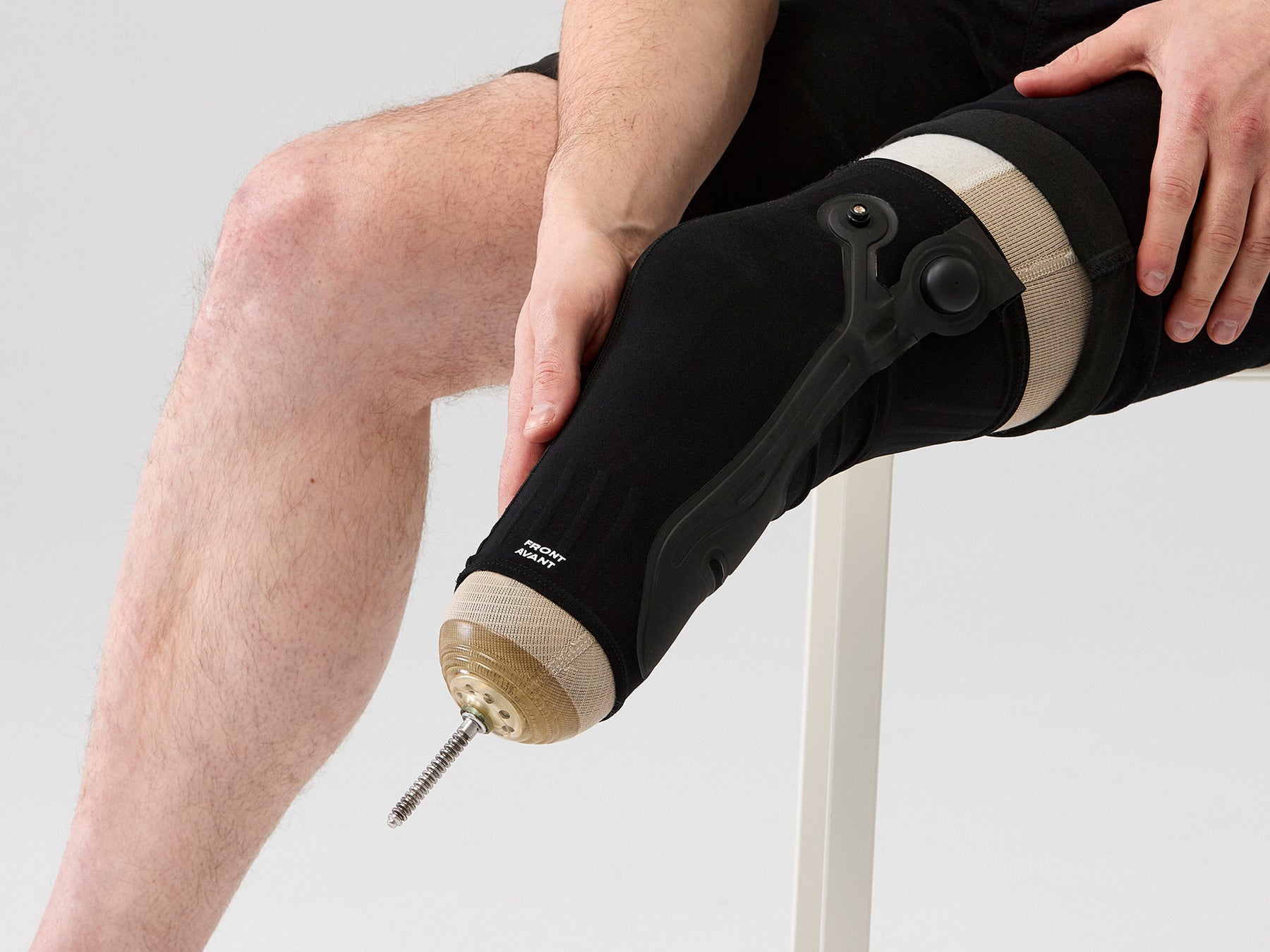

Slide the Overlay over the liner with the air expansion system behind the limb.
The prosthesis can then be slid back on. All the air cells must be in the socket below the trim line.

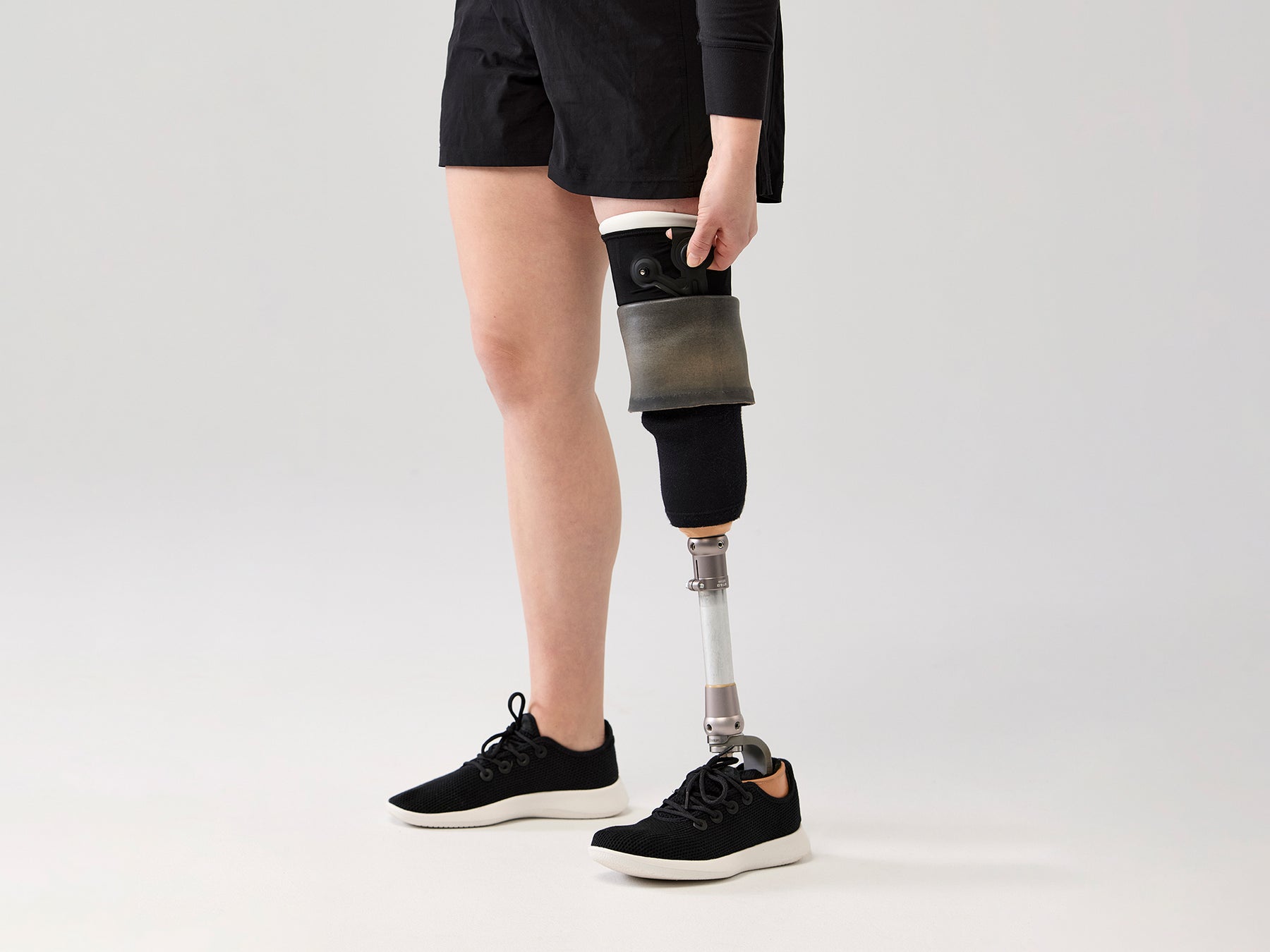

Use the external pump to adjust the cushioning as you wish throughout the day. You can also use the integrated pump.

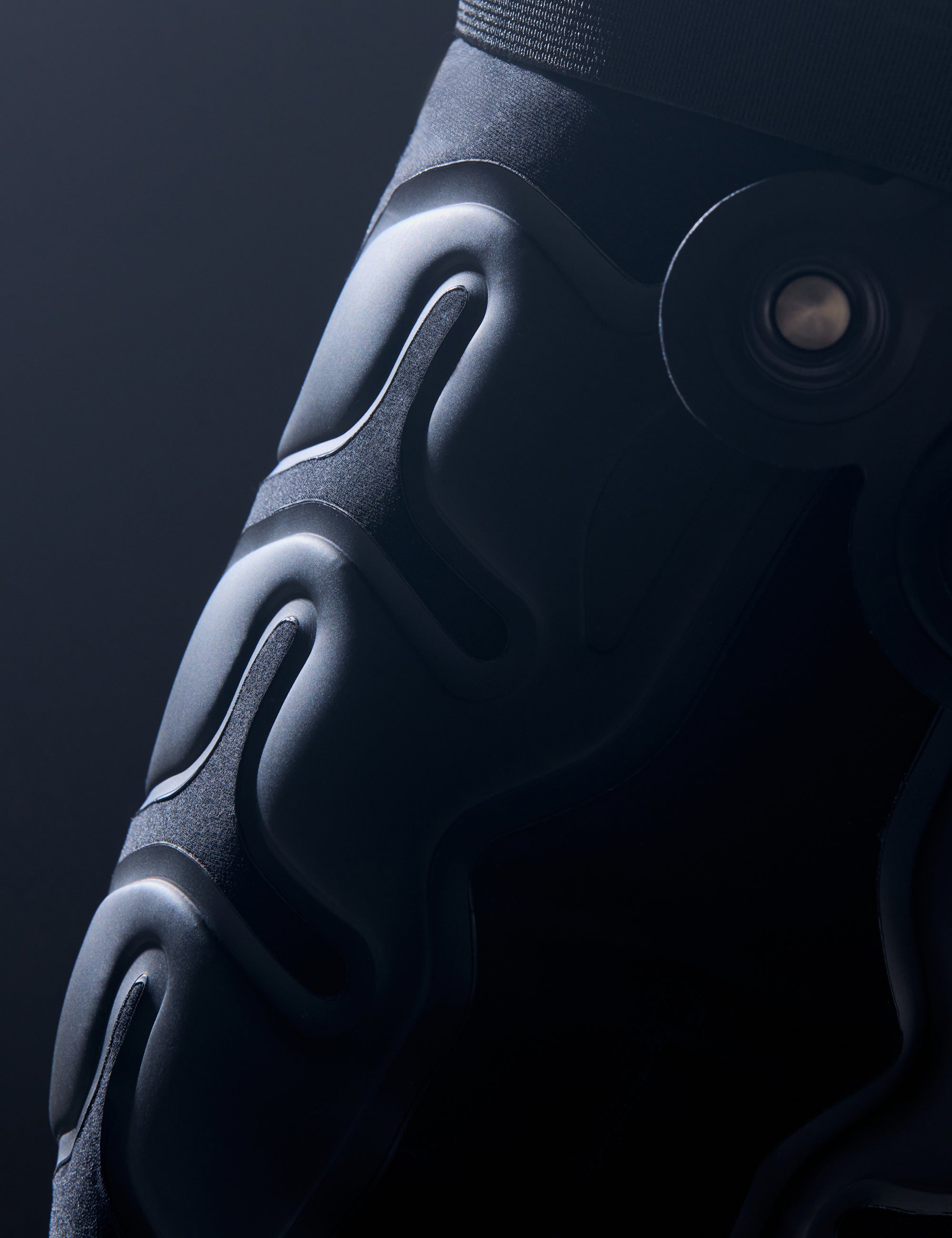

Simply deflate the Overlay (by pressing on the silver pin of the exit valve) before removing the prosthesis and the liner.

Specifications

Level of limb difference

Transtibial (below knee)
Level of activity

Low, Moderate and High  (K1 to K4)
Suspension method 

Distal fixation, Suspension sleeve, Passive and active vacuum
Materials

Nylon, Elasthanne, TPU, PVC, Spring steel, Silicone

Introducing OverlayTM

A breathable fabric sleeve that integrates an air expansion system to create a uniform tightness in the socket.

Personalized fit

Retrofit sizing

Air expansion system

The Overlay works with most liners and is compatible with distal fixation, suspension sleeves, active and passive vacuum systems.

It can be used through clothing without removing the prosthesis and evenly distributes air within the socket to adapt to different residual limb morphologies.

Specifications

Level of limb difference

Level of activity

Suspension method

Materials
